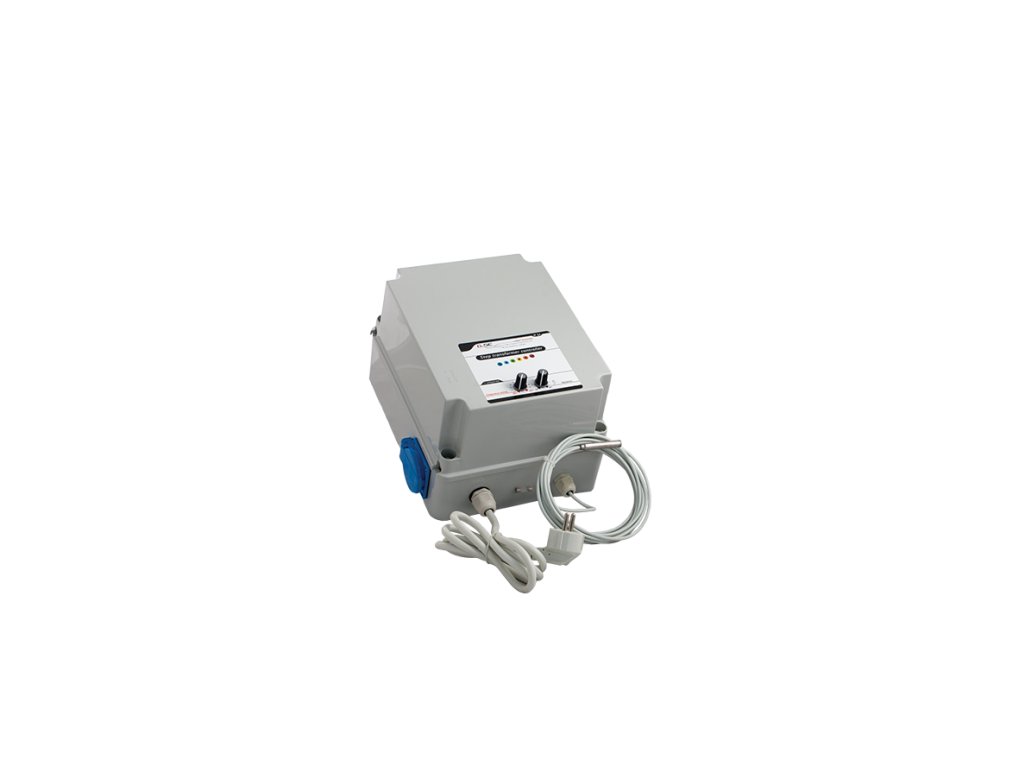

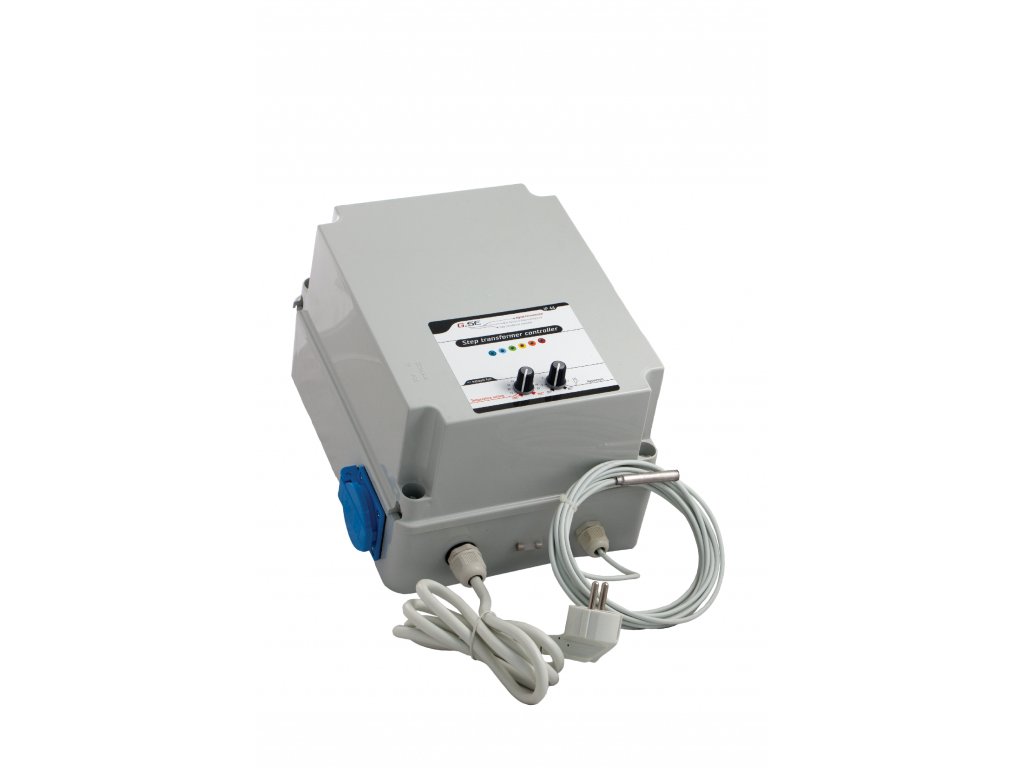

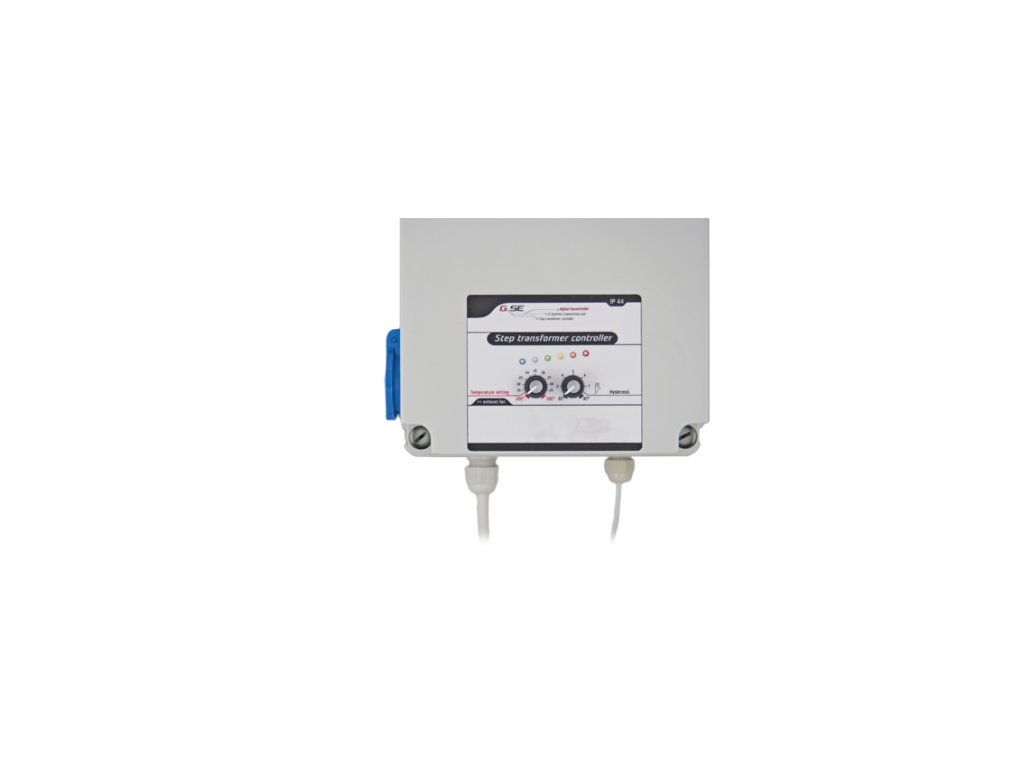

GSE Step transformer - teplota/hystereze pro 1 ventilátor - 2A

Detailní popis produktu

Teplotu a hysterzi lze nastavit pomocí dvou knoflíků. Regulátor dodáváme kompletní a je připraven k použití. O ochranu regulátoru se stará voděodolný kryt. Regulátor se hodí do vlhkého prostředí.

Technické parametry:
Rozměry: 265x300x205mm
Napětí: 230V/50Hz
Navrženo pro: 2,5A/600w
Sensor (5V) měří teploty od -55°C do +125°C
Krytí: IP44

The step transformer controller have the special characteristic that the ventilators make no noise "hum" in the lower rotation. The step transformer control the fan speed from self 6-step up/down according the temperature. Temperature as Hysteresis (sensitivity) can be set on two knob's.

The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable and can be extended up to 50meters.

Sizes and technical data's:
Case: WxHxD = 200x250x180mm
Controller: WxHxD = 265x300x205mm
Designed for: 2,5A / 600W
Volts: 230V / 50HZ
Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
0.5°C accuracy from –10°C to +85°C
Protection class: IP54

Settings range:
Temperature: 20C° - 30C°
Temperature hysteresis: 2-8C°
